Compare Spray Guns

Pick the guns you want to compare. Every figure comes straight from each gun's specification.

Highlight differences

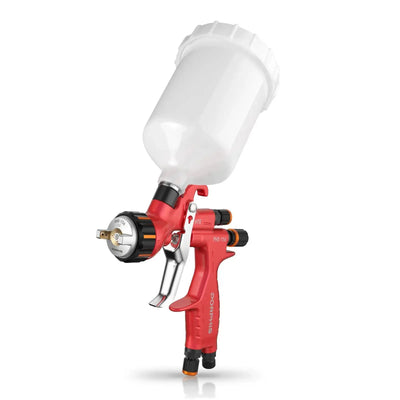

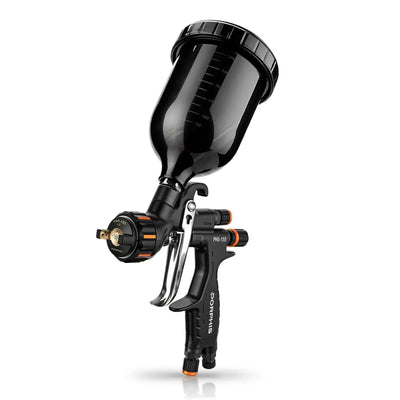

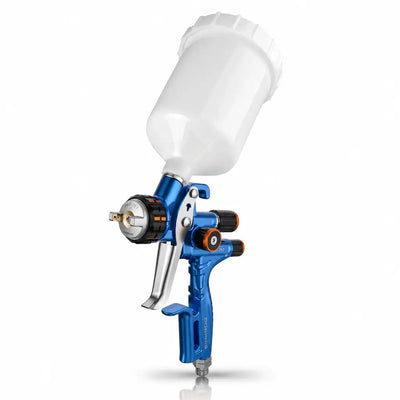

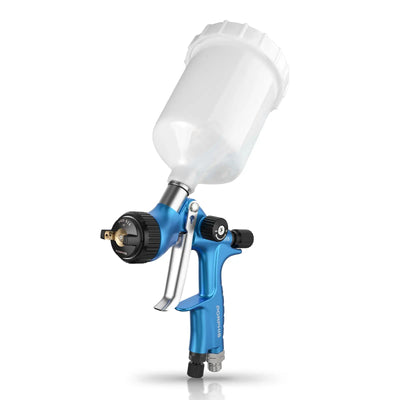

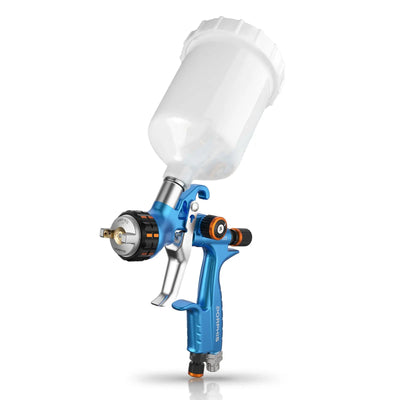

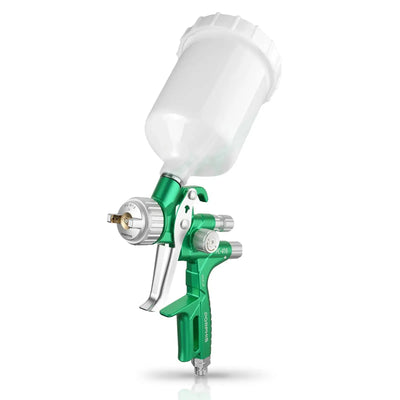

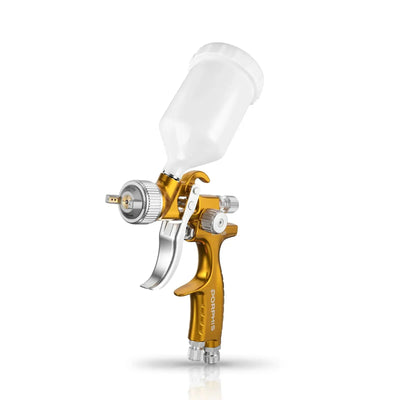

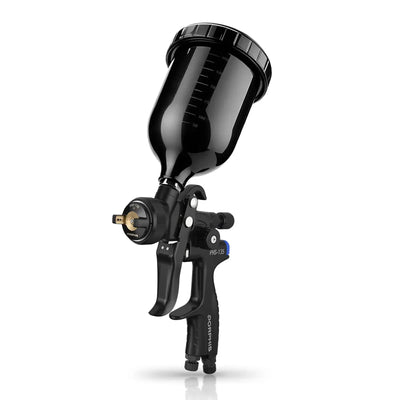

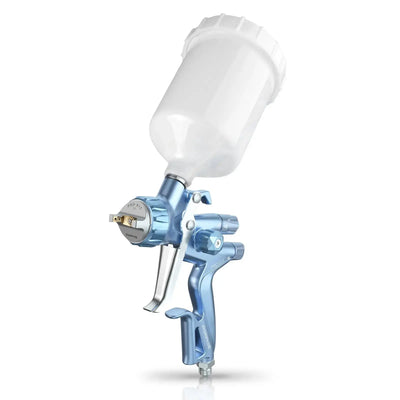

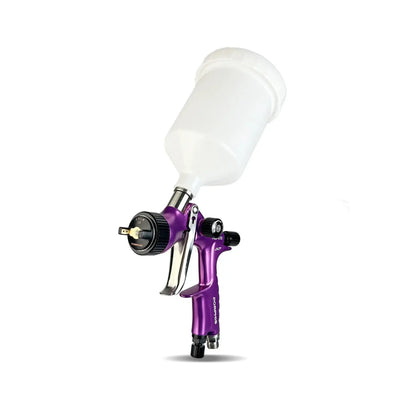

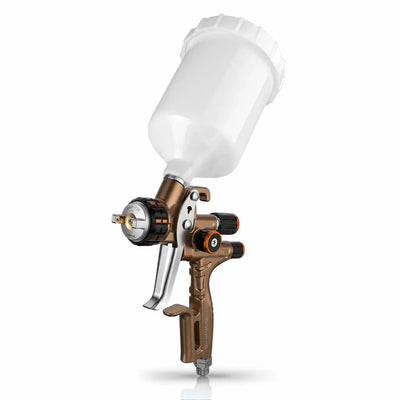

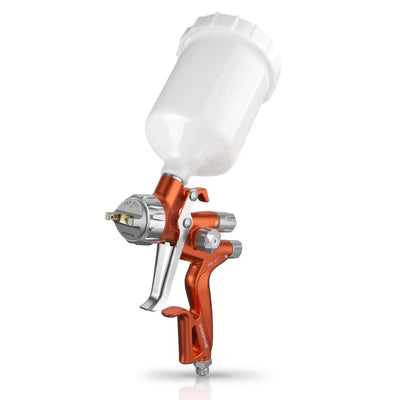

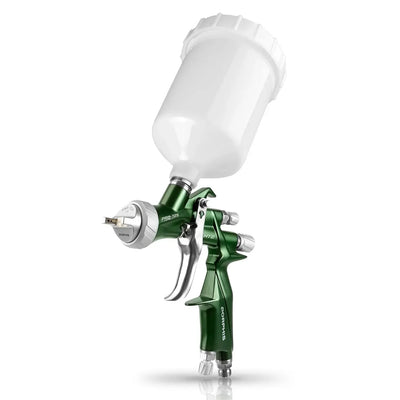

Specification	PRD-817VS 'Split Tip' Professional Spray Gun ~~£339.99~~£329.99View gun	PRD-815MP Professional Spray Gun ~~£324.99~~£319.99View gun	PRD-725MP Professional Spray Gun ~~£259.99~~£249.99View gun	PRD-717VS 'Split Tip' Professional Spray Gun ~~£239.99~~£219.99View gun	PRD-627VS Professional Spray Gun £209.99View gun	PRD-716HVLP Professional Spray Gun £199.99View gun	PRD-626HVLP Professional Spray Gun £194.99View gun	PRD-625MP Professional Spray Gun £194.99View gun	PRD-715MP Professional Spray Gun ~~£209.99~~£189.99View gun	PRD-510LVLP Spray Gun - Small Compressor Friendly £159.99View gun	PRD-515MP Spray Gun £149.99View gun	MPH-338LVLP MINI Spray Gun £124.99View gun	PC-416(MK 2) HVLP Spray Gun £119.99View gun	PC-415(MK 2) MP Spray Gun From £119.99View gun	PHS-155MP Spray Gun From £109.99View gun	PHS-156HVLP Spray Gun £89.99View gun	PHS-135MP Spray Gun From £74.99View gun
Executive summary	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
Technology	VS	MP	MP	VS	VS	HVLP	HVLP	MP	MP	LVLP	MP	LVLP	HVLP	MP	MP	HVLP	MP
Standard nozzle size	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.0 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm
Available nozzle sizes	1.3 mm	1.2, 1.3 mm	1.3, 1.4 mm	1.3, 1.4 mm	1.3, 1.4 mm	1.3 mm	1.3 mm	1.3 mm	1.2, 1.3 mm	0.8, 1.0, 1.3 mm	1.3, 1.4, 1.6, 1.8 mm	0.8, 1.0, 1.2 mm	1.3 mm	1.3, 1.6, 1.8 mm	1.3, 1.4, 1.6, 1.8 mm	1.3 mm	1.3, 1.8, 2.5 mm
Operating pressure	1.3–1.8 bar19–26 PSI	1.6–2.0 bar23–29 PSI	1.5–2.0 bar22–29 PSI	1.3–1.8 bar19–26 PSI	1.3–1.8 bar19–26 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI	1.0–1.5 bar15–22 PSI	1.6–2.0 bar23–29 PSI	1.0–1.5 bar15–22 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI	1.6–2.0 bar23–29 PSI
Air consumption	15.2 CFM	9.5 CFM	8.0 CFM	15.2 CFM	15.2 CFM	15.2 CFM	15.2 CFM	10.5 CFM	10.5 CFM	5.7 CFM	10.5 CFM	5.7 CFM	15.2 CFM	10.5 CFM	10.5 CFM	15.2 CFM	10.5 CFM
Minimum compressor size	FAD ≥ 19 CFM	FAD ≥ 12 CFM	FAD ≥ 10 CFM	FAD ≥ 19 CFM	FAD ≥ 19 CFM	FAD ≥ 19 CFM	FAD ≥ 19 CFM	FAD ≥ 13.5 CFM	FAD ≥ 13.5 CFM	FAD ≥ 7.5 CFM	FAD ≥ 13.5 CFM	FAD ≥ 7.5 CFM	FAD ≥ 19 CFM	FAD ≥ 13.5 CFM	FAD ≥ 13.5 CFM	FAD ≥ 19 CFM	FAD ≥ 13.5 CFM
Fluid consumption	175 ml/min	190 ml/min	190 ml/min	175 ml/min	175 ml/min	190 ml/min	190 ml/min	215 ml/min	190 ml/min	60 ml/min	215 ml/min	35 ml/min	190 ml/min	190 ml/min	215 ml/min	190 ml/min	200 ml/min
Spray pattern width	260–350 mm	320–350 mm	260–300 mm	260–350 mm	260–350 mm	260–290 mm	260–290 mm	260–300 mm	260–300 mm	120–200 mm	260–300 mm	120–200 mm	260–290 mm	260–300 mm	260–300 mm	260–290 mm	260–300 mm
Spray distance	150 mm	170–190 mm	170 mm	150 mm	150 mm	170 mm	170 mm	180 mm	180 mm	150 mm	180 mm	150 mm	170 mm	180 mm	180 mm	170 mm	180 mm
Suitable coats	Base Coat Clear Coat Metallic / Pearlescent	Base Coat Clear Coat Single-stage	Base Coat Clear Coat Lacquer Polyurethane Single-stage Stain	Base Coat Clear Coat Lacquer Metallic / Pearlescent	Base Coat Clear Coat Metallic / Pearlescent	Base Coat Clear Coat Lacquer	Base Coat Clear Coat Lacquer Primer Stain	Base Coat Clear Coat Single-stage	Base Coat Clear Coat Single-stage	Base Coat Clear Coat Lacquer Polyurethane Primer Single-stage Stain Thin-film / Low-viscosity	Base Coat Clear Coat Single-stage	Base Coat Clear Coat Lacquer Polyurethane Stain Thin-film / Low-viscosity	Base Coat Clear Coat Lacquer Stain	Base Coat Clear Coat Polyurethane Single-stage	Base Coat Clear Coat Polyurethane Single-stage Stain	Base Coat Clear Coat Lacquer Primer Stain	Base Coat Clear Coat Polyurethane Single-stage
Paint base	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne	Solventborne Waterborne
Suited to	Full vehicle Furniture & general Panel	Full vehicle Spot repair	Panel Spot repair	Full vehicle Panel	Furniture & general Panel	Full vehicle Panel	Furniture & general Panel	Full vehicle Panel	Full vehicle Panel	Furniture & general Panel Small parts & models Spot repair	Full vehicle Panel	Furniture & general Panel Small parts & models Spot repair	Full vehicle Furniture & general Panel	Full vehicle Furniture & general Panel	Furniture & general Panel	Furniture & general Panel	Full vehicle Furniture & general Panel
Skill level	Professional	Professional	Advanced DIY Professional	Advanced DIY Professional	Professional	Advanced DIY Professional	Professional	Advanced DIY Professional	Advanced DIY Professional	Beginner DIY	Advanced DIY Professional	Advanced DIY DIY	Beginner DIY	Beginner DIY	DIY Professional	Beginner DIY	Beginner DIY
Similar to	Iwata LS400 Series 2	DeVilbiss DV1 Base	—	Iwata WS400 Series 2	Iwata WBX	SATA SATAjet 5500 HVLP	SATA SATAjet 5000 RP	SATA SATAjet 5000 RP	Iwata W400 Bellaria	Sagola Mini Xtreme	Walcom Slim Xlite	DeVilbiss DV1S 1.0	DeVilbiss DV1S 1.0	DeVilbiss DV1 C1 Clear	Iwata Kiwami 4	Sagola 3300 GTO TECH	Sagola 3300 GTO TECH
Close alternatives	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
Paint cup thread	—	M16x1.5 male	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
Inlet thread	—	G 1/4	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—

Minimum compressor size is the gun's air consumption plus a 25% reserve, rounded up to the nearest 0.5 CFM. Compare it with your compressor's delivered air (FAD), not its displacement.

Find Your PORPHIS Spray Gun

Not sure which spray gun to buy? You're not alone, and you don't need to be an expert. Answer a few simple questions and we'll recommend the best Porphis gun for you.

We'll ask you about:

What you're painting: a whole car, a single panel or a small repair
Your compressor: its air output (CFM), tank size and motor power
The type of paint you use
How much spraying experience you have

It only takes about a minute.

Not sure about your compressor? Look on the label or the product page for "air displacement" or "air delivery", shown in CFM or litres per minute. The tank size (litres) and motor power (HP) help too. If you can't find them, our support team will happily help.
