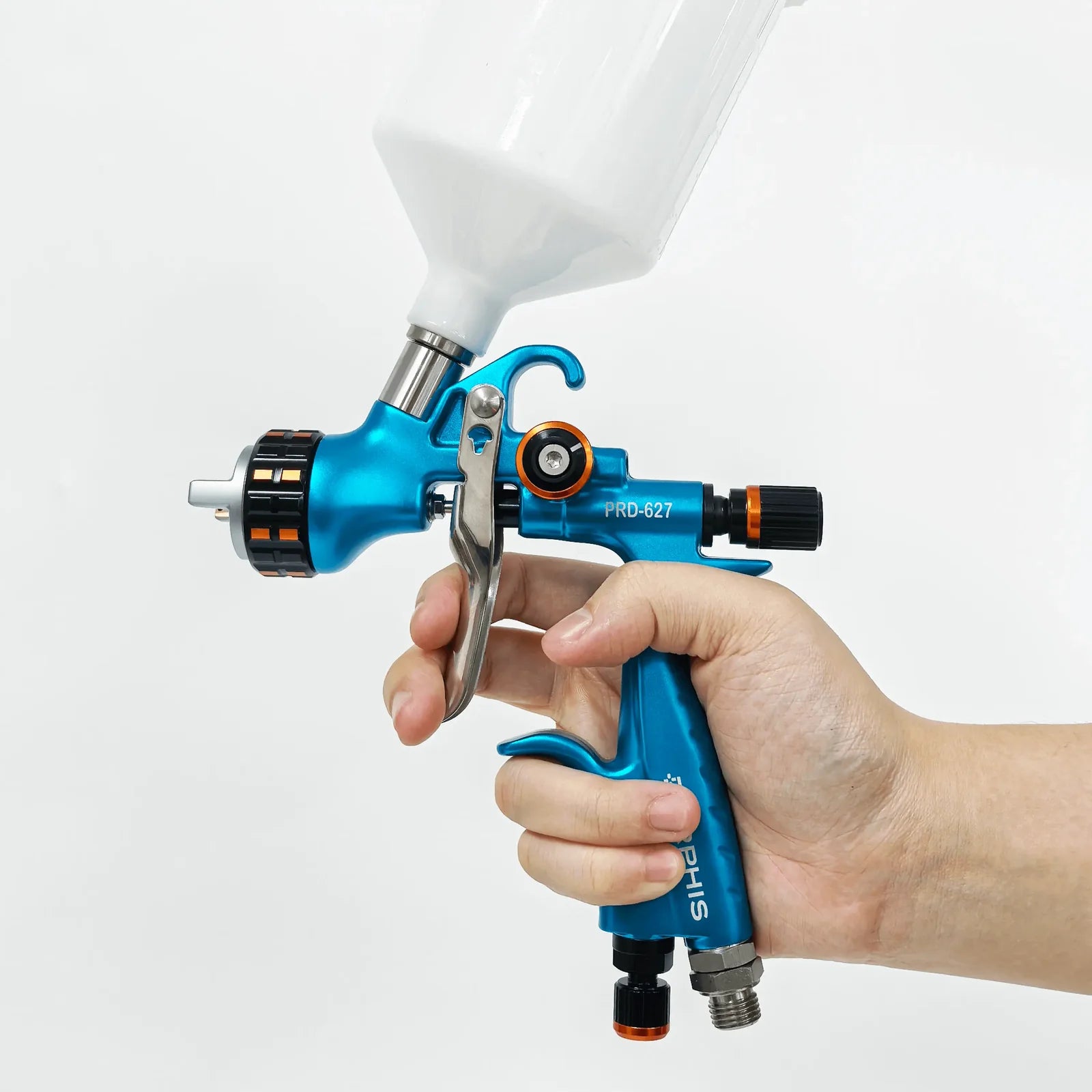

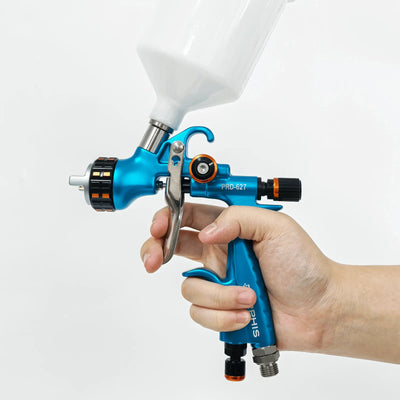

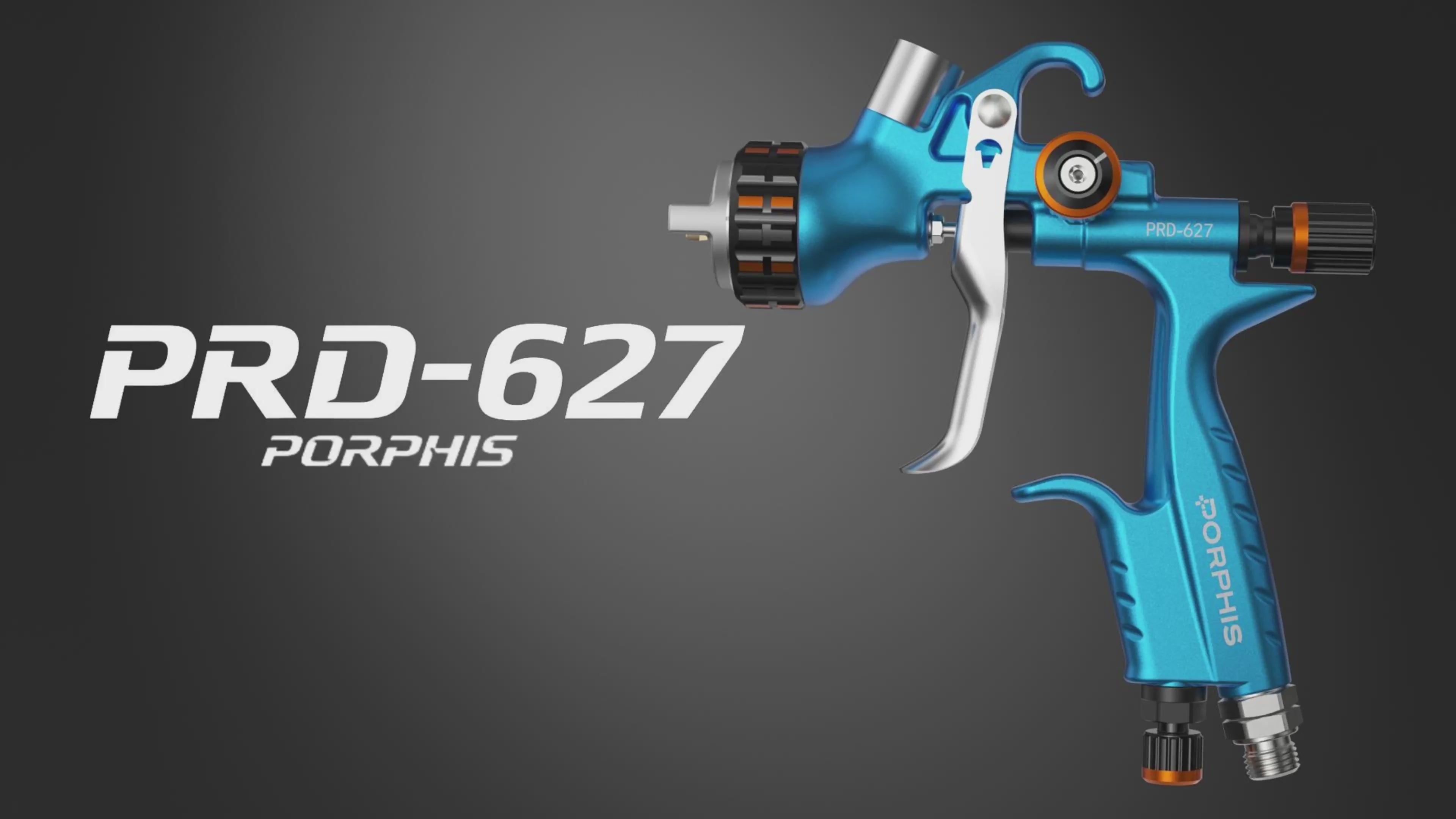

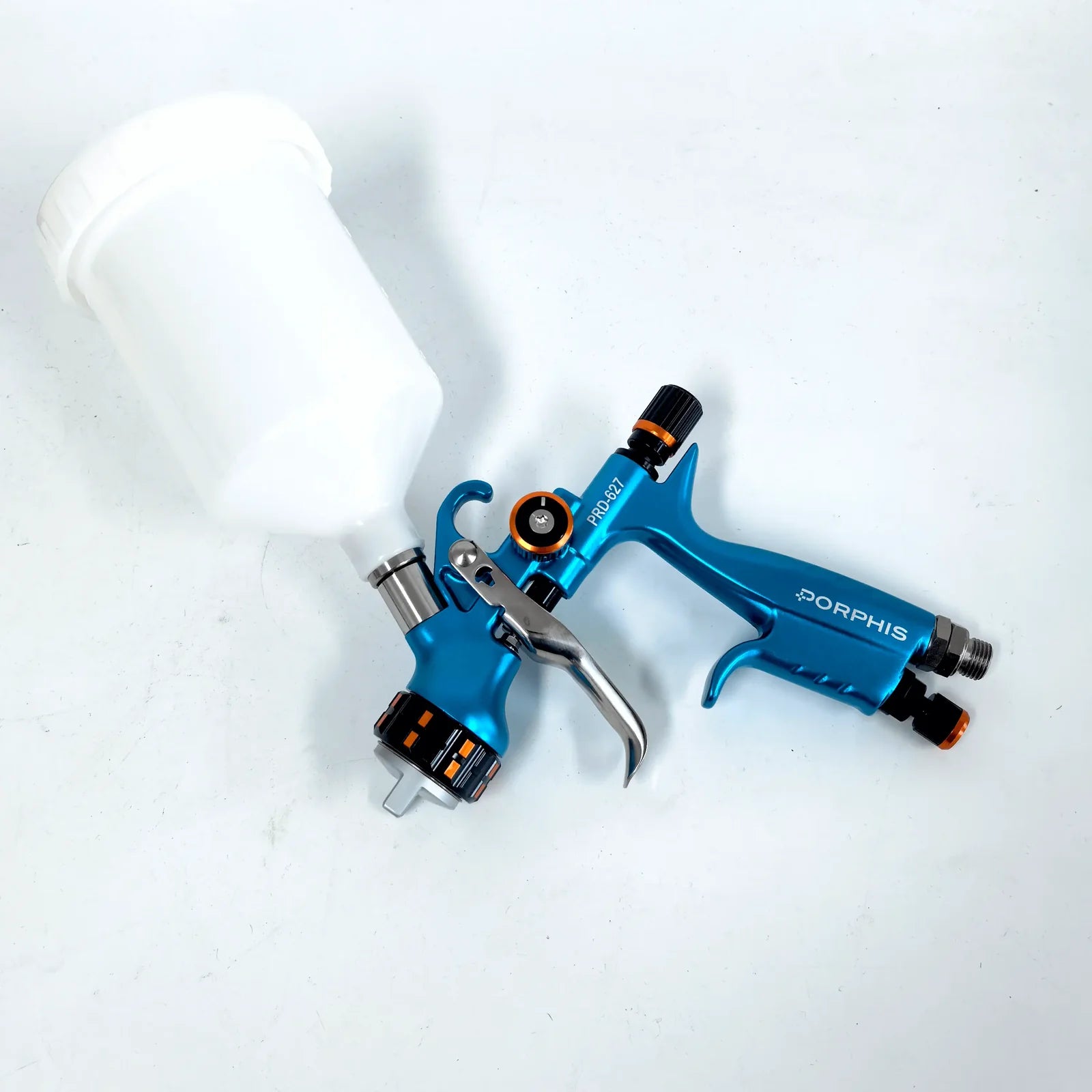

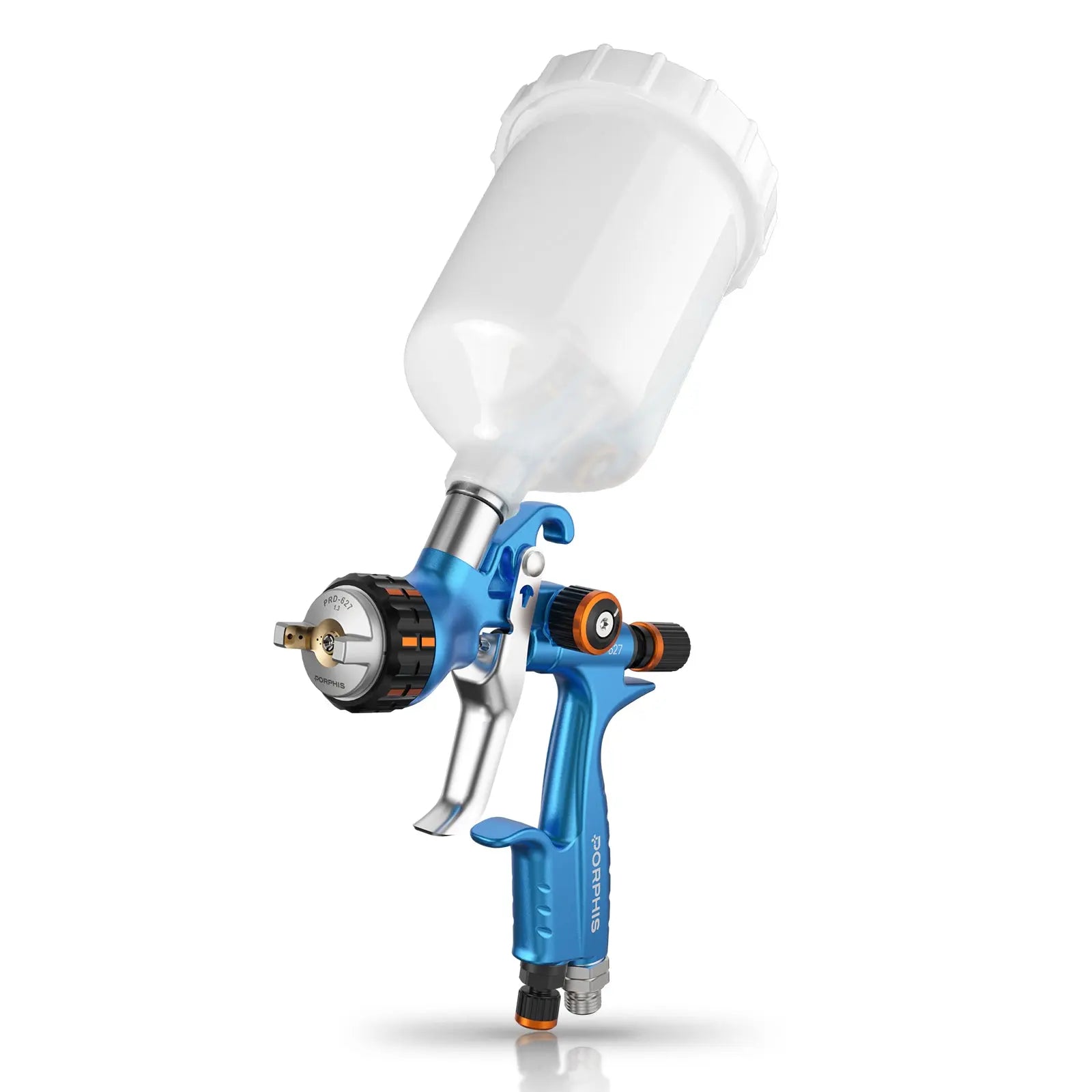

PRD-627 VS Professional Spray Gun

PRD-627 Professional Paint Gun

Split Nozzle Atomisation for Clear Coat Finishes That Hold Up Under Direct Light

The PRD-627 is a precision spray gun built for painters who put clear coat and metallic finish quality above everything else. Its VS split nozzle splits the paint flow through a dual-runner design, giving a more even droplet distribution than a standard single-runner nozzle — the difference that shows up as mottling or sparkle-shift on metallic and pearl finishes when it's missing. Paired with an integrated needle valve body and a patented flow compression nut set, it's built to seal tightly and stay that way, session after session, making it a strong choice for professional refinishing, show-quality panel work and any job where atomisation consistency can't be an afterthought.

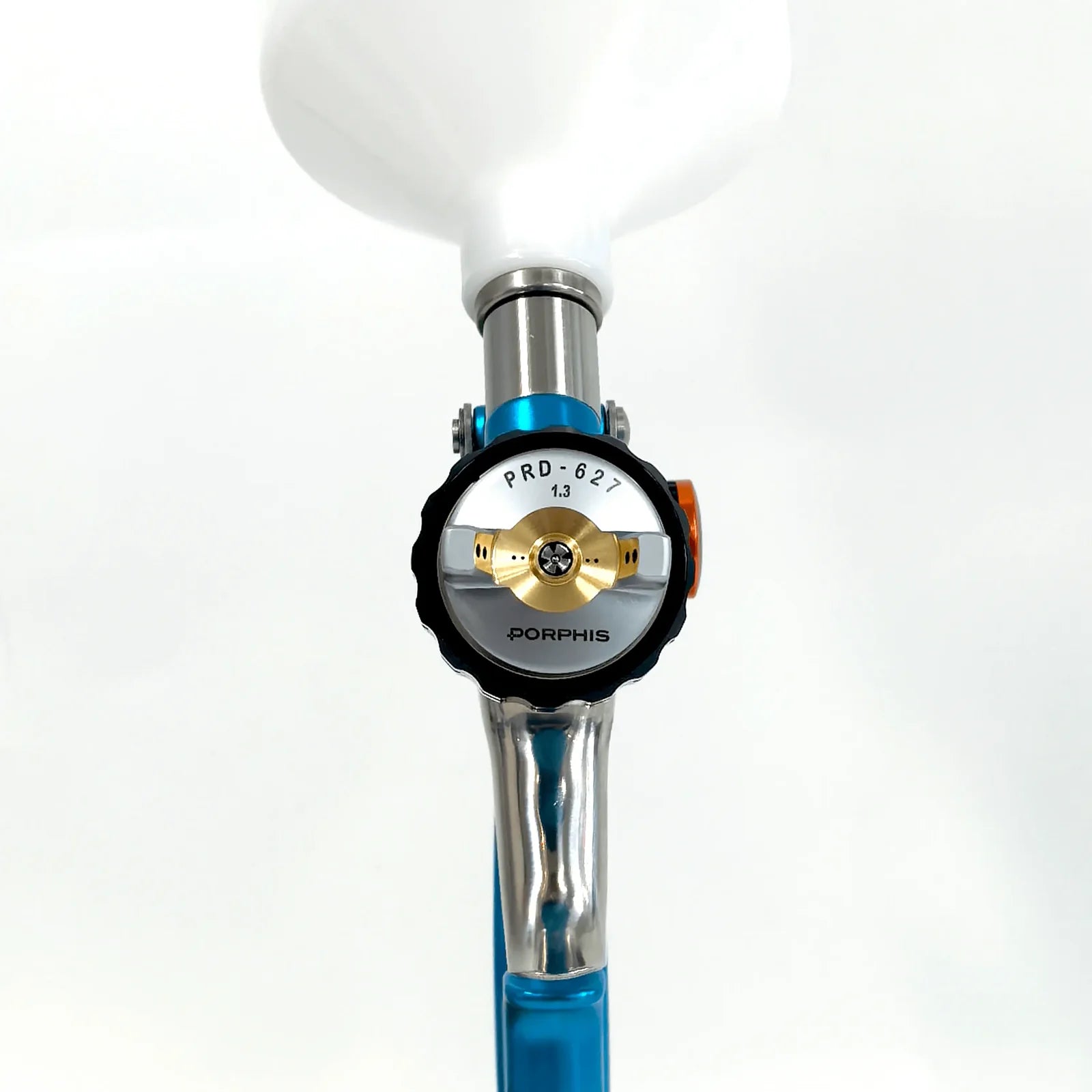

Split Nozzle Technology for Uniform, Repeatable Atomisation
The PRD-627's split nozzle is the core of what sets it apart. By dividing paint flow before it reaches the tip, it produces a more uniform droplet size across the full width of the fan, keeping colour and finish consistent from edge to edge on a panel — critical for metallics and pearls, where uneven atomisation reads as visible variation under light. Operating at 1.3–1.8 bar with 15.2 CFM air consumption and a 260–350mm spray pattern, it's tuned for clear coat and top coat viscosities, with the nozzle runner design reducing clogging risk on higher-viscosity 2K clears compared to a conventional single-passage tip.

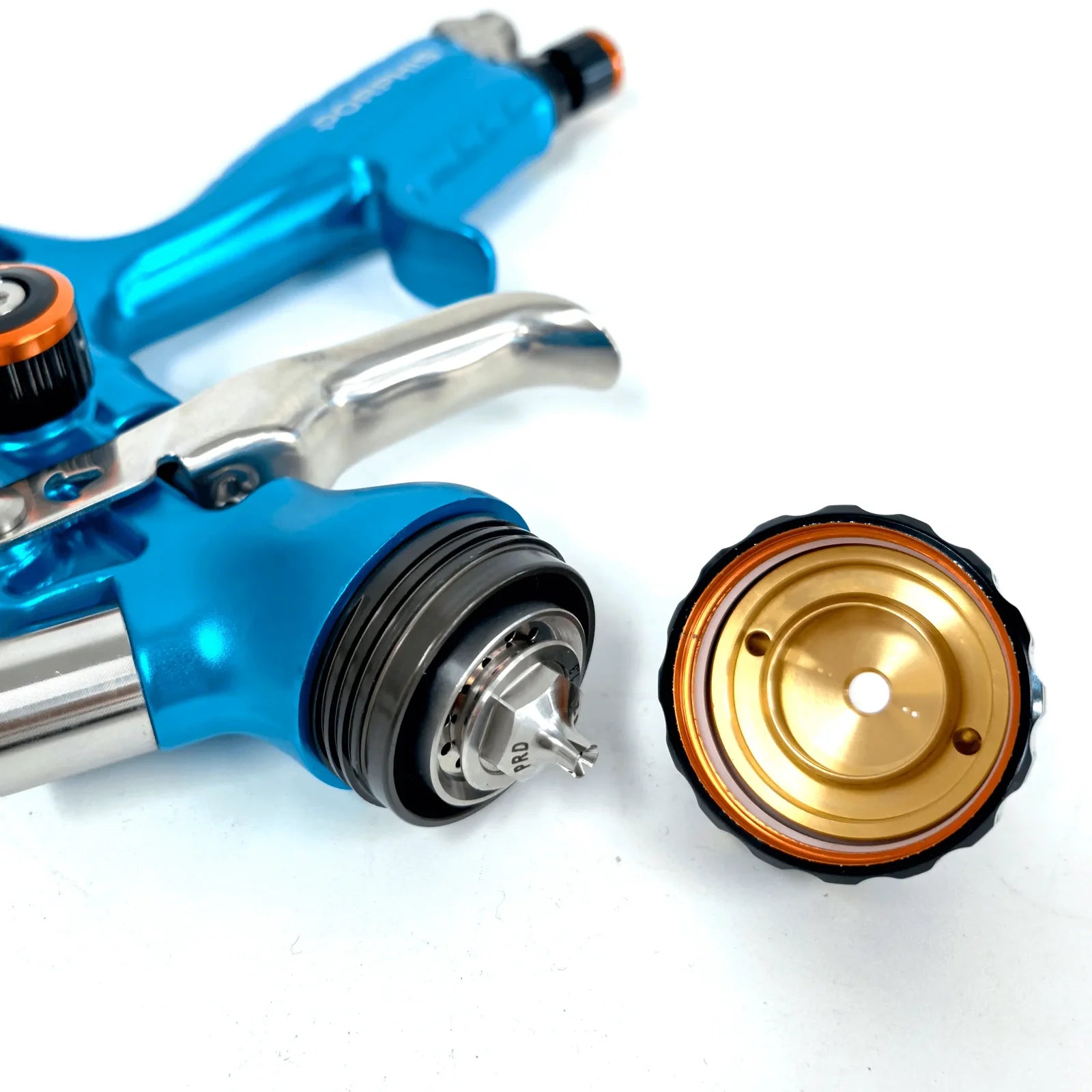

Integrated Needle Valve and Compression Nut Sealing for Long-Term Reliability
The PRD-627 combines the needle and air valve into a single precision-machined assembly, cutting out the separate leak points and wear surfaces found in conventional two-piece designs — the result is a tighter seal from day one and a trigger response that stays consistent as the gun wears in. A patented flow compression nut set locks the nozzle assembly against the gun body mechanically rather than relying on thread torque alone, so vibration and heat build-up during a long session don't cause paint weeping or drifting spray patterns. Built with a forged aluminium body, anodised finish, stainless steel fluid passages and a brass air cap, it's designed for daily professional use, with worn parts replaceable via the PRD-62 series repair kit rather than needing a full gun replacement.
