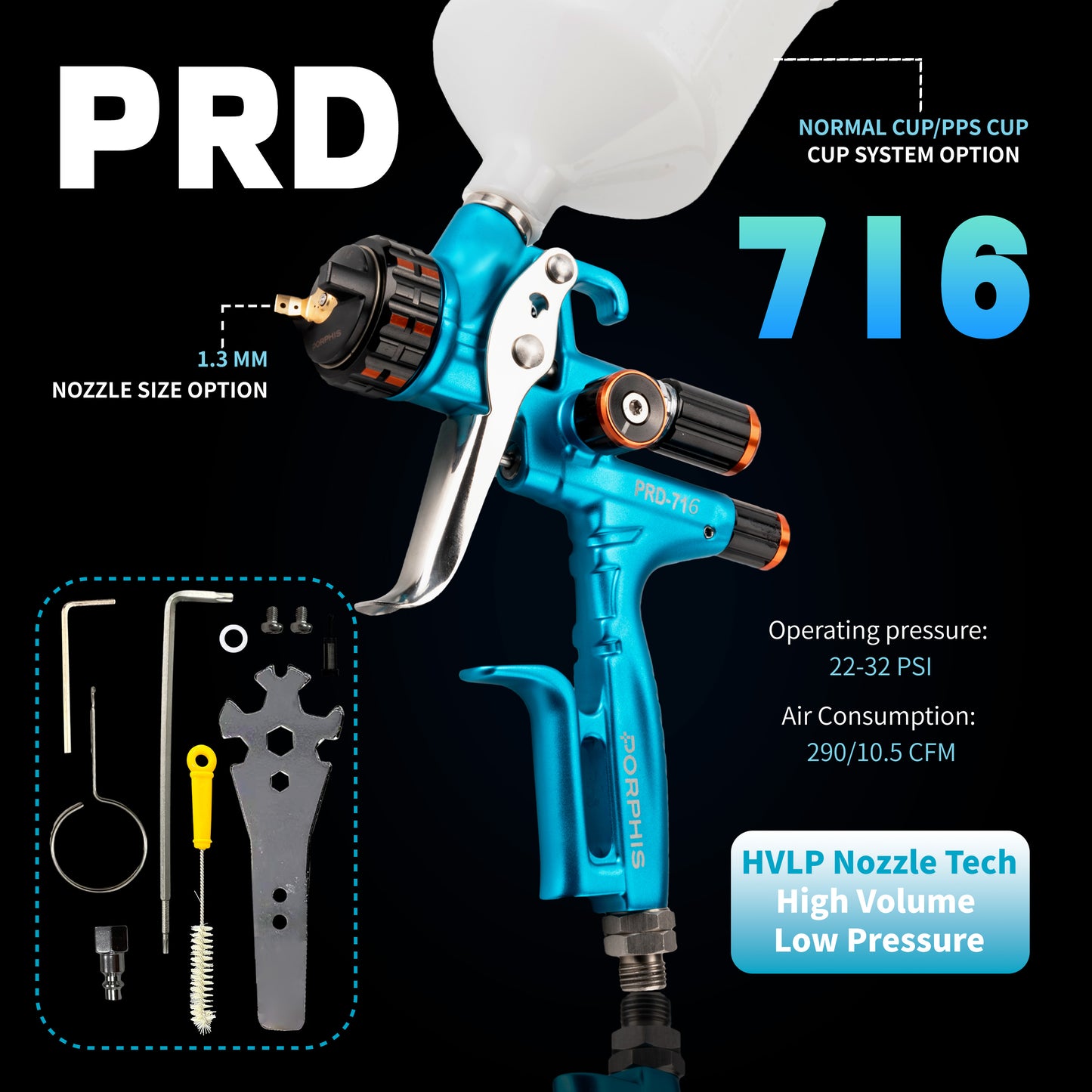

Porphis PRD-716 HVLP Nozzle 1.3mm Professional Spray Gun

The PRD-716 spraying equipment is a professional spray gun based on HVLP (High Volume Low Pressure) technology, designed for efficient and environmentally friendly spraying operations and perfect for base coat application.

Its low-pressure working range combined with a high-flow air delivery system significantly reduces paint splashing and over-atomization, improves material utilisation and reduces environmental pollution.

It can be adapted to different viscosity paints and diversified construction scenarios. It is an ideal tool for automotive refinishing, furniture painting and industrial spraying.

Specifications

Technology & Efficiency

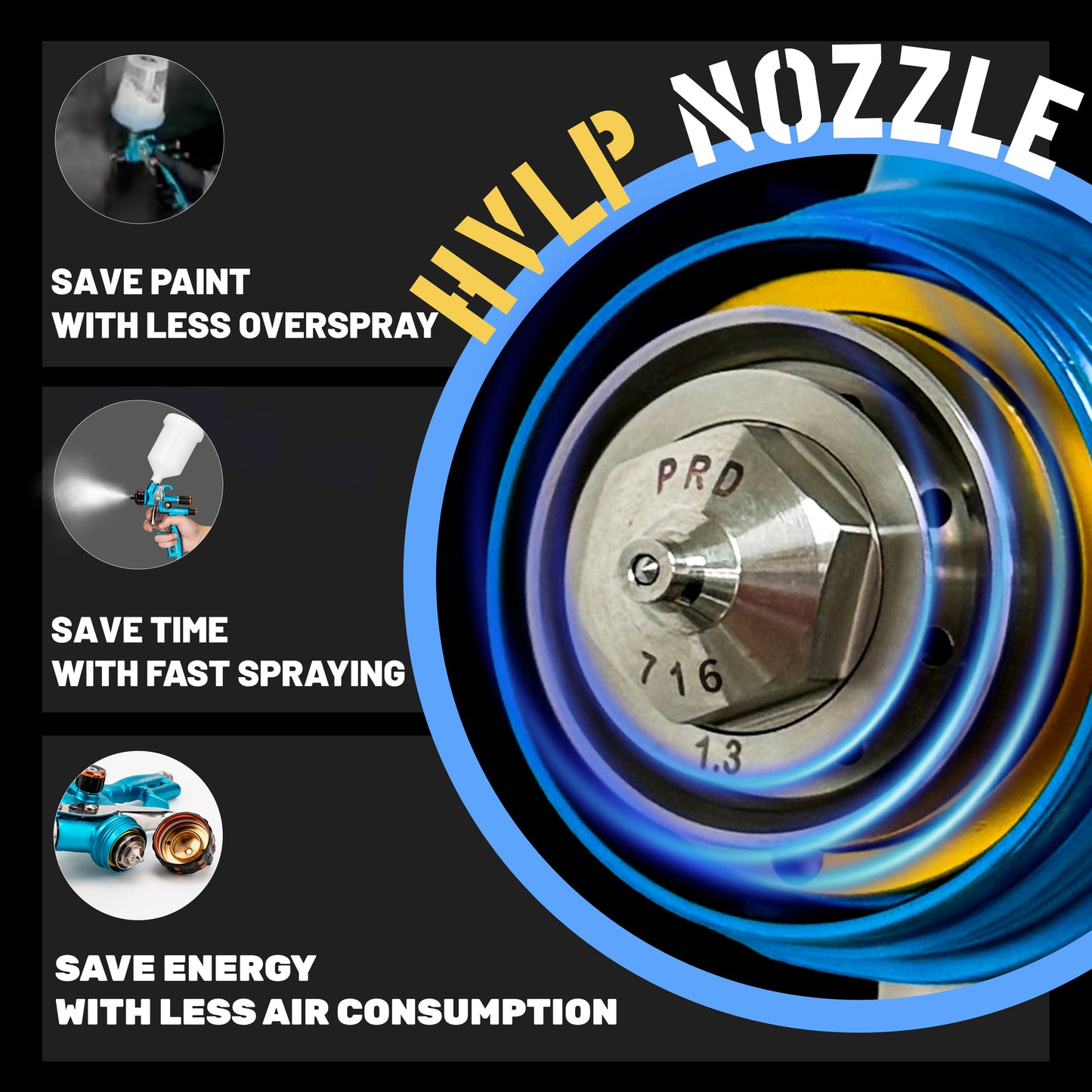

• Utilises HVLP (High Volume, Low Pressure) for professional-grade, eco‑friendly spraying.
• Reduces overspray and material waste (up to 30% savings) while improving point‑to‑point accuracy

Atomization & Coverage

• Delivers fine, uniform droplets for smooth, even coatings.
• Wide spray pattern (260–290 mm) at 170 mm spray distance → rapid surface coverage

Robust Construction

• Forged aluminium body with anodised finish.

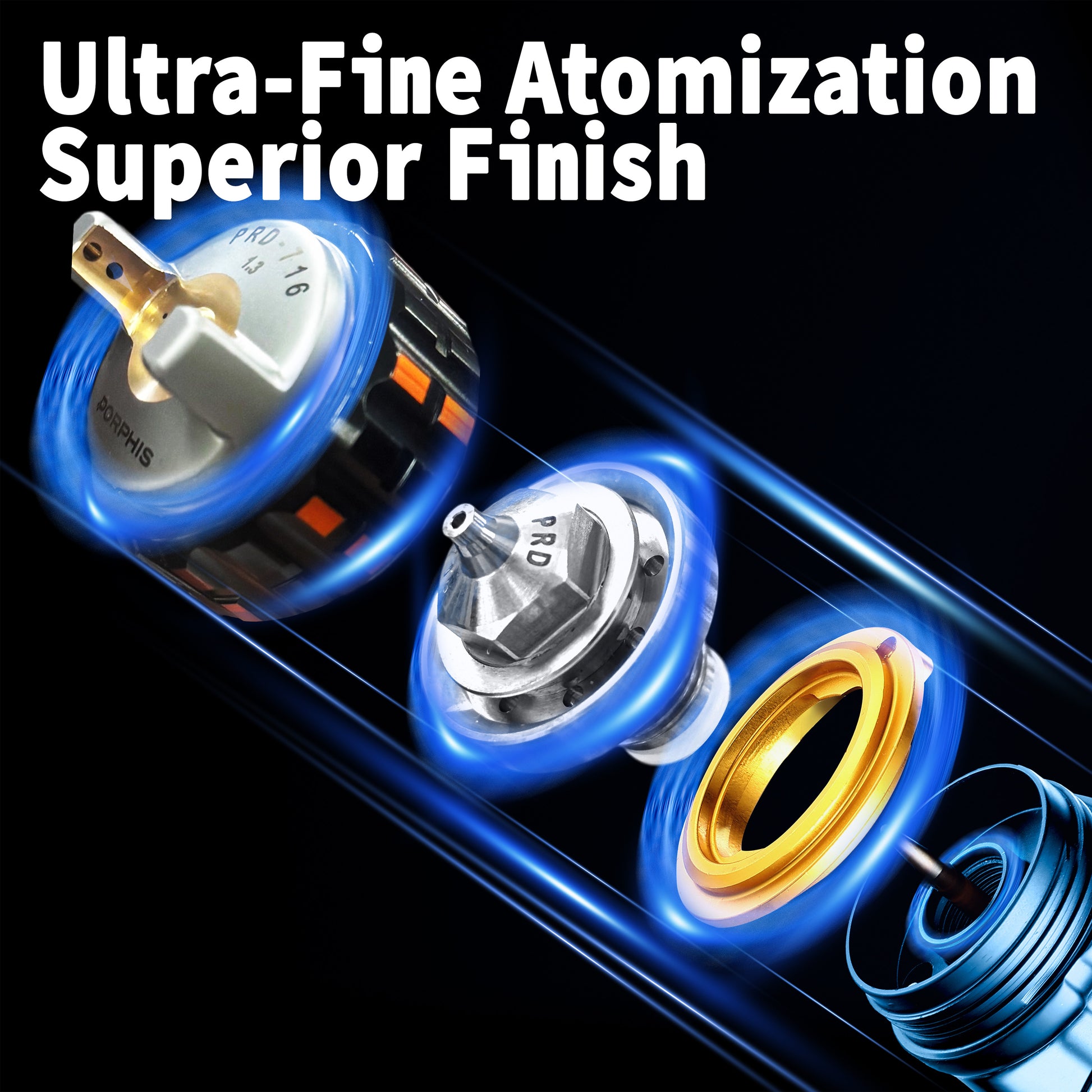

• Stainless‑steel fluid channels, needle, nozzle; brass air cap; metal distribution ring.
• High‑strength design handles frequent use in tough conditions

Ergonomics & Weight

• Lightweight (460 g) and ergonomically designed for comfortable use during extended periods

Durability Enhancements

• Patented fluid‑adjustment set and metal air‑cap ring (5× longer life than standard).

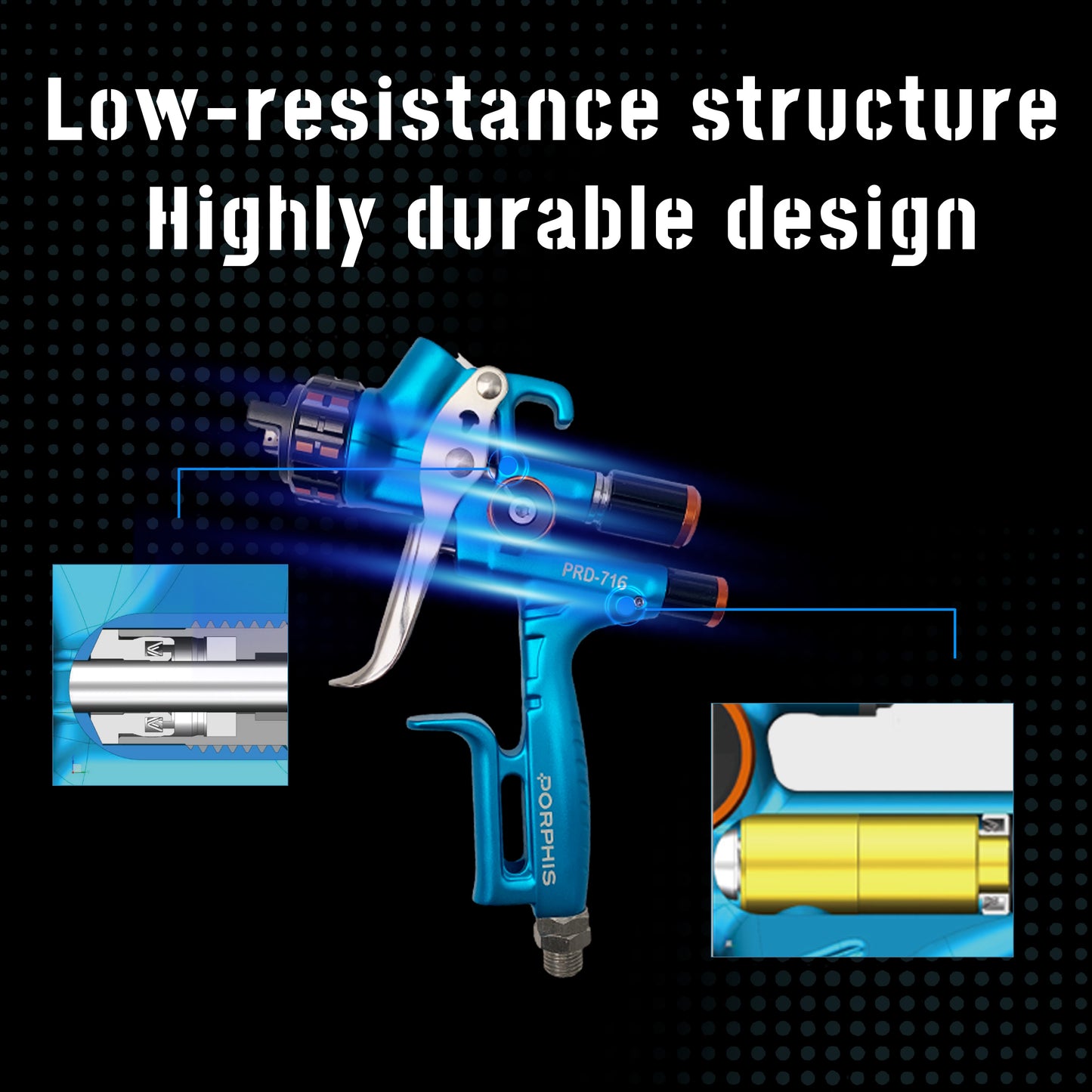

• Low-resistance fluid dynamics aids stable spraying and reduces energy loss
